Have you ever wondered how cars shift gears without driver input? Automatic transmissions are the answer. They revolutionized driving by providing convenience and efficiency. In this post, you'll learn the basics of automatic transmission, its evolution in modern vehicles, and the benefits it offers drivers today.
The story of automatic transmissions starts in the early 1900s. The first automatic gearbox, the 1904 Sturtevant "horseless carriage gearbox," was a groundbreaking invention in Boston, USA. It featured two forward gears and used engine-driven flyweights to shift gears automatically. As the car slowed, the gearbox would shift back to low gear. However, this early system was prone to abrupt shifts and sudden failure.
Planetary gearsets marked a major advancement. The 1901-1904 Wilson-Pilcher car in the UK used two epicyclic gears to provide four gear ratios. This design included a sun gear at the center, planet gears around it, and a ring gear encircling the planets. Locking or releasing these parts created different gear ratios. This compact system became the foundation for modern automatic transmissions.
In 1923, Alfred Horner Munro from Canada patented an early automatic transmission using compressed air instead of hydraulic fluid. Although innovative, it lacked power and never reached commercial use.
The 1930s brought a major breakthrough with the introduction of the Hydramatic by Cadillac and Oldsmobile. Released in 1939, General Motors' Hydramatic was the first mass-produced fully hydraulic automatic transmission. It used planetary gearsets and hydraulic controls for smooth, driver-free gear changes. By 1957, over 80% of new cars in the US had automatic transmissions.
Later developments included the torque converter replacing the manual clutch. This fluid coupling allowed the engine to run even when the car was stopped, improving ease of use. Electronic controls arrived in the late 20th century, enabling transmissions to shift based on sensors monitoring speed, throttle, and engine load. This increased efficiency and driving comfort.
Technology has driven continuous improvements in automatic transmissions. Early mechanical governors controlling shift timing gave way to electronic Transmission Control Units (TCUs). These smart systems use real-time data to optimize gear changes for fuel efficiency, performance, and smoothness.
Dual-clutch transmissions (DCTs), introduced in the early 2000s, use two clutches to pre-select gears, allowing lightning-fast shifts. Continuously Variable Transmissions (CVTs) offer seamless gear ratio changes using belts and pulleys, improving fuel economy.
Advances in materials, hydraulics, and software have made modern automatics more reliable and efficient than ever. They now rival or surpass manuals in fuel economy and performance.
Automatic transmissions come in several types, each with its own design and driving feel. Understanding these types helps you choose the right one for your needs. Here are the four common kinds:
This is the classic automatic transmission found in many vehicles. It uses planetary gearsets controlled by hydraulic systems and a torque converter instead of a clutch. The torque converter smoothly transfers engine power to the transmission, allowing the car to stop without stalling the engine.
Traditional ATs shift gears automatically using hydraulic pressure and electronic sensors that monitor speed, throttle, and engine load. They provide smooth gear changes and are easy to drive, especially in heavy traffic. However, they tend to be less fuel-efficient than newer transmission types.
DCTs use two separate clutches — one for odd gears and one for even gears. This setup allows the transmission to pre-select the next gear, enabling extremely fast and smooth gear changes. The result is quick acceleration and improved fuel efficiency.
DCTs are popular in performance and sports cars because they combine the convenience of an automatic with the control and responsiveness of a manual. However, they can feel jerky at low speeds and may cost more to repair due to their complex design.
AMTs blend manual and automatic features. They have a traditional manual gearbox but replace the clutch pedal with an automated clutch system controlled by electronics and hydraulics. Drivers can let the system shift gears automatically or manually select gears without using a clutch pedal.
AMTs are more affordable and fuel-efficient than traditional automatics but can feel less smooth during gear changes. The shifting can sometimes be jerky, which some drivers find less comfortable.
CVTs don't use fixed gears. Instead, they have a system of belts and pulleys that provide an infinite range of gear ratios. This lets the engine run at its most efficient speed regardless of vehicle speed, improving fuel economy.
Driving a CVT feels smooth since there are no gear shifts, just seamless acceleration. However, some drivers dislike the engine noise and sensation during rapid acceleration. CVTs are common in hybrid and economy cars due to their efficiency advantages.
Tip: When selecting vehicles for commercial fleets, consider dual-clutch and CVT models for their fuel efficiency and quick shifting, which can reduce operating costs and improve driver comfort.

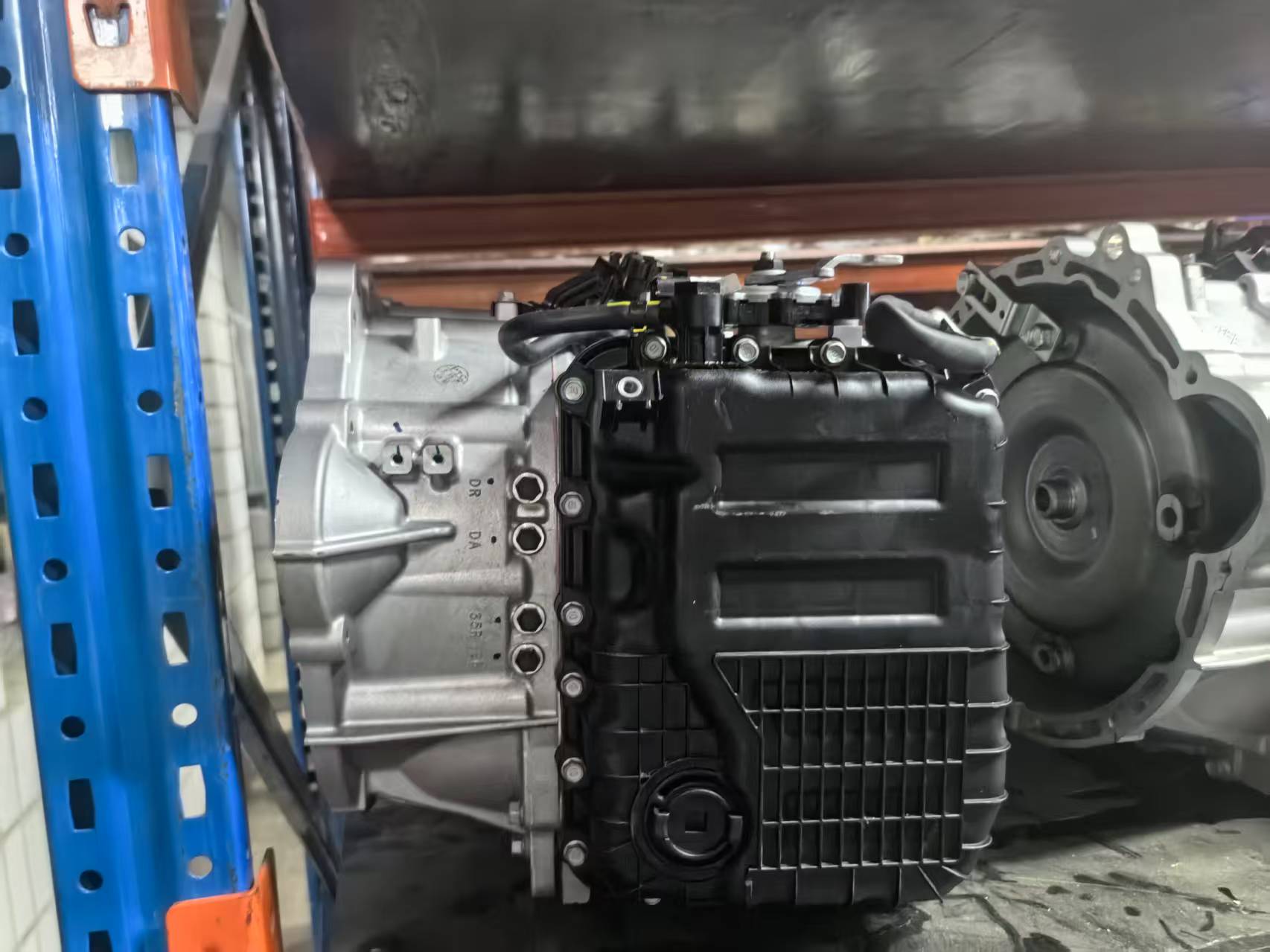

Automatic transmissions rely on several key components working together to shift gears smoothly and efficiently. Understanding these parts helps you appreciate how power flows from the engine to the wheels and how gear changes happen without driver input.
Gearsets form the core of any transmission. They consist of multiple gears arranged to provide different gear ratios. A gear ratio is the relationship between the input speed from the engine and the output speed to the wheels. Lower gear ratios multiply engine torque, allowing the vehicle to start moving or climb hills. Higher gear ratios reduce engine speed during cruising, improving fuel efficiency.
Most automatic transmissions use planetary gearsets. These compact systems include a sun gear, planet gears, and a ring gear. By locking or releasing these components, the transmission creates various gear ratios. For example, first gear provides high torque for launching the vehicle, while higher gears reduce engine RPM for smooth highway driving.
Clutches and bands engage and disengage gearsets to select the appropriate gear. In manual transmissions, the driver operates a clutch pedal to control power flow. Automatics use hydraulic pressure to operate multiple clutch packs and bands inside the transmission.
When shifting gears, hydraulic fluid applies pressure to clutches or bands, locking certain gearsets and unlocking others. This process allows the transmission to shift seamlessly without driver intervention. Clutches ensure power flows smoothly, preventing jerky gear changes.
Bands are steel straps that wrap around parts of the gearset to hold them stationary during shifts. They work alongside clutches to control gear engagement precisely.
Transmission fluid plays a vital role beyond lubrication. It transmits hydraulic pressure needed to activate clutches and bands. The fluid also cools transmission components, preventing overheating during operation.
Over time, transmission fluid can degrade or become contaminated, reducing its effectiveness. Regular fluid changes help maintain proper hydraulic pressure, smooth shifting, and extend transmission life. Using the manufacturer-recommended fluid type is essential to avoid damage.
Automatic transmissions shift gears using a combination of hydraulic pressure, clutches, bands, and planetary gearsets. Sensors monitor vehicle speed, engine load, and throttle position, sending data to the Transmission Control Unit (TCU). The TCU then decides the optimal time to shift gears for smoothness and efficiency.
Inside the transmission, a hydraulic pump circulates transmission fluid, creating the pressure needed to engage or release clutches and bands. When the TCU signals a shift, hydraulic pressure activates specific clutch packs or bands, locking or unlocking parts of the planetary gearset. This action changes the gear ratio, adjusting engine power delivery to the wheels without driver input.

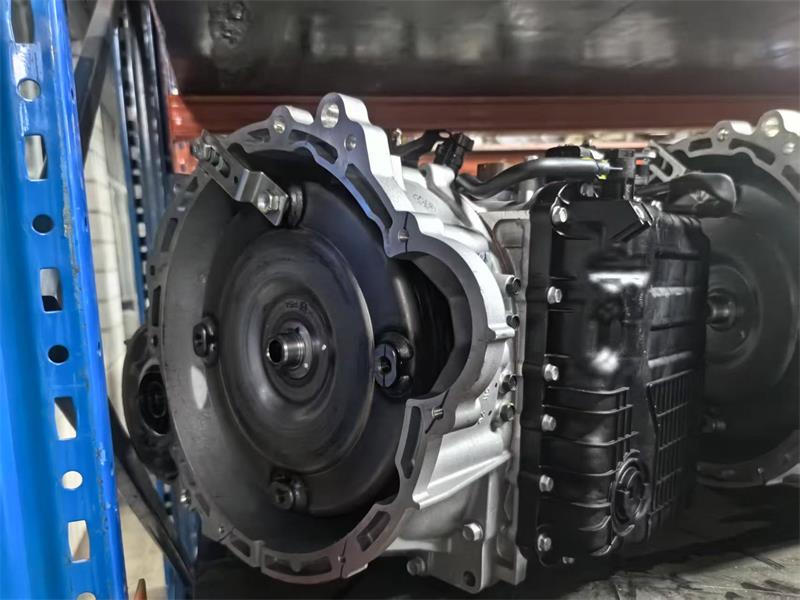

The torque converter plays a vital role here. It acts as a fluid coupling between the engine and transmission, allowing the engine to keep running while the vehicle is stopped. The torque converter also multiplies torque at low speeds, easing the vehicle's launch from a standstill.
First gear provides the highest torque multiplication, essential for moving the vehicle from rest. When you press the accelerator from a stop, the torque converter transmits engine power fluidly to the transmission input shaft. This smooth power transfer prevents stalling and reduces jerks during launch.
As the vehicle gains speed, the transmission automatically shifts to higher gears by unlocking and locking different components of the planetary gearset. This progression reduces engine RPM, improving fuel efficiency and ride comfort. The hydraulic system ensures these shifts happen seamlessly, maintaining smooth acceleration.
In semi-automatic or automated manual transmissions (AMTs), drivers can manually select gears without a clutch pedal. Here, electronic actuators control clutch engagement and gear shifts, blending manual control with automatic convenience.
Automatic transmissions offer several operating modes such as Park (P), Reverse (R), Neutral (N), Drive (D), and Low (L). Each mode serves a specific function:
● Park (P): Locks the transmission to prevent vehicle movement. Always engage the parking brake for extra safety, especially on slopes.
● Reverse (R): Engages reverse gear for backing up.
● Neutral (N): Disengages drive but allows the vehicle to roll; useful in traffic or towing situations.
● Drive (D): Enables normal forward driving with automatic gear shifts.
● Low (L): Limits the transmission to lower gears, useful for towing or driving downhill.
Proper use of these modes can extend transmission life. For example, avoid shifting into Park without stopping completely, as this can stress the parking pawl. Excessive use of manual mode or aggressive driving can accelerate wear on clutches and bands. Low transmission fluid levels or overheating also reduce service life.
Regular maintenance, including fluid checks and changes, helps maintain hydraulic pressure and cooling, ensuring smooth gear shifts and long transmission life.
Keeping an automatic transmission in good shape means regular maintenance. One of the most important tasks is changing the transmission fluid at intervals recommended by the vehicle manufacturer. This fluid lubricates, cools, and transmits hydraulic pressure inside the transmission, so clean fluid ensures smooth operation. Check fluid levels periodically and look for signs of contamination, like dark color or a burnt smell, which indicate it’s time for a change.
Using the correct type of transmission fluid is critical. Different transmissions require specific fluid formulations to maintain proper hydraulic pressure and protect internal parts. Always refer to your owner’s manual or consult a professional mechanic.
Besides fluid, inspect the transmission filter if your vehicle has one. A clogged filter can restrict fluid flow, causing overheating and premature wear. Also, watch for leaks under the vehicle. Transmission fluid leaks reduce fluid levels and can lead to costly damage.
Driving habits affect transmission life. Avoid harsh acceleration, sudden stops, and excessive towing loads beyond the vehicle’s rating. These behaviors strain the transmission and accelerate wear. Use the parking brake when parked on inclines to reduce stress on the parking pawl.
Automatic transmissions can face several issues over time. Here are some common problems and their typical fixes:
● Slipping Gears: The transmission unexpectedly shifts out of gear or revs without acceleration. This often results from worn clutch packs or low fluid levels. Solution: Check and replace fluid; repair or rebuild clutch packs as needed.
● Delayed Engagement: When shifting from Park to Drive or Reverse, there is a noticeable delay before the vehicle moves. Often caused by low fluid or worn seals. Solution: Fluid check and replacement; seal replacement if leaking.
● Rough or Harsh Shifting: Gear changes feel jerky or clunky. Causes include faulty solenoids, contaminated fluid, or worn internal parts. Solution: Diagnose with scan tools; replace solenoids; fluid flush; repair internal components.
● Overheating: Transmission runs hot, often due to low fluid, heavy towing, or cooling system issues. Overheating damages seals and clutches. Solution: Maintain proper fluid levels; install auxiliary coolers for towing; check radiator and cooling system.
● Fluid Leaks: Red fluid puddles under the vehicle indicate leaks from seals, gaskets, or cooler lines. Solution: Identify leak source; replace faulty seals or lines.
Early diagnosis and repair prevent more severe damage and save money.
Transmission maintenance costs vary but are generally affordable compared to major repairs. A typical transmission fluid change costs $100 to $200. Filter replacement, if required, adds to this.
Repairs can become costly depending on the problem. Minor repairs like solenoid replacement or seal fixes may range from $300 to $1,000. More extensive repairs, such as clutch pack or valve body replacement, can cost $1,000 to $3,000.
Complete transmission rebuilds or replacements are the most expensive, often between $2,000 and $4,000 or more, depending on the vehicle and transmission type.
Different transmission types also influence costs. Traditional automatics generally have lower maintenance and repair costs than dual-clutch or continuously variable transmissions, which require specialized parts and expertise.
For commercial fleets, investing in regular maintenance reduces downtime and expensive repairs, improving vehicle availability and operational efficiency.
Fuel efficiency between automatic and manual transmissions has changed significantly over time. Traditionally, manual transmissions were more fuel-efficient because they have fewer energy losses and allow drivers to control gear shifts precisely. However, modern automatic transmissions, especially dual-clutch transmissions (DCTs) and continuously variable transmissions (CVTs), have closed the gap or even surpassed manuals in fuel economy.
DCTs achieve faster gear changes with minimal power loss, improving efficiency during acceleration. CVTs provide an infinite range of gear ratios, allowing the engine to operate at its most efficient speed regardless of vehicle speed. This results in better fuel consumption, especially in city driving or stop-and-go traffic.
That said, basic traditional automatics with torque converters may still consume slightly more fuel than manuals, especially in older models. But advances in electronic controls and transmission design continue to improve automatic transmission fuel efficiency.
Manual transmissions give drivers direct control over gear selection, which can enhance performance in certain situations. Skilled drivers can optimize gear shifts for acceleration, engine braking, and handling, making manuals popular in sports cars and off-road vehicles.
Automatics, on the other hand, offer convenience and consistency. Modern automatics use sensors and computers to select the best gear for current conditions, providing smooth shifts without driver input. This makes them ideal for urban driving, heavy traffic, and long-distance cruising.
DCTs combine the best of both worlds by offering quick, precise shifts and manual control options via paddle shifters. CVTs excel in smooth acceleration but may lack the sporty feel some drivers prefer.
In challenging conditions like steep hills or towing, manuals allow drivers to hold lower gears for engine braking. Automatics often include "Low" or "Manual" modes to mimic this control, but some drivers find manual transmissions more responsive in these scenarios.
Transmission Type | Pros | Cons |
Manual | Greater driver control | Requires skill and coordination |
- Can be tiring in heavy traffic | ||
Lower initial cost and simpler design | Learning curve for beginners | |
Automatic | Easier to drive, especially in traffic | Usually higher initial cost |
Smooth, consistent shifting | Can be more expensive to repair | |
Advanced types offer excellent fuel efficiency | Less direct control for driver |
Choosing between manual and automatic transmissions depends on your driving style, environment, and preferences. Automatics suit drivers seeking ease and comfort, while manuals appeal to those wanting control and engagement.
Automatic transmissions have evolved rapidly thanks to advances in electronics, materials, and software. Modern transmissions use sophisticated Transmission Control Units (TCUs) that analyze real-time data like speed, throttle position, and engine load. This allows gear shifts to be faster, smoother, and more efficient than ever before.
One major innovation is the widespread adoption of dual-clutch transmissions (DCTs). These use two clutches to preselect gears, enabling nearly instantaneous shifts without power loss. DCTs offer the performance of manual transmissions combined with the convenience of automatics, making them popular in sports cars and high-end vehicles.
Continuously Variable Transmissions (CVTs) have also improved. New designs use stronger belts and advanced pulley systems, delivering smoother acceleration and better fuel economy. CVTs adjust gear ratios seamlessly, keeping the engine in its optimal power range.
Electronic controls now integrate with hybrid and electric powertrains. This coordination optimizes gear selection to maximize energy recovery and reduce emissions. Software updates can fine-tune transmission behavior over time, improving performance without hardware changes.
Looking ahead, automatic transmissions will become even smarter and more efficient. Artificial intelligence and machine learning could enable transmissions to learn a driver’s habits and adjust shift patterns for personalized performance and comfort.
More manufacturers are exploring multi-speed electric transmissions designed specifically for electric vehicles (EVs). These transmissions can provide multiple gear ratios to improve acceleration and efficiency, overcoming limitations of single-speed EV drivetrains.
Integration with connected vehicle technology will allow transmissions to anticipate road conditions, traffic, and terrain. For example, transmissions might preemptively downshift before steep hills or adjust for stop-and-go traffic, enhancing fuel economy and drivability.
Lightweight materials and compact designs will reduce transmission weight and size, improving overall vehicle efficiency and handling.
Innovations in automatic transmission technology play a key role in reducing vehicle emissions and improving sustainability. More efficient gear shifting reduces fuel consumption, lowering carbon footprints.
CVTs and DCTs help engines operate closer to their ideal efficiency range, cutting wasted energy. This is especially important in urban driving, where stop-and-go traffic wastes fuel.
Hybrid and electric vehicle transmissions optimize energy use and regeneration, supporting cleaner transportation.
Manufacturers are also focusing on eco-friendly transmission fluids with longer service lives and lower environmental impact. Reducing fluid leaks and improving recycling processes further enhance sustainability.
Automatic transmissions have evolved significantly, offering various types like traditional ATs, DCTs, AMTs, and CVTs. Each type provides unique driving experiences and efficiency benefits. Choosing the right transmission depends on your driving needs and preferences. Future advancements promise smarter, more efficient systems, integrating AI and sustainable technologies. For those seeking reliable, cutting-edge solutions, Tosen offers advanced automatic transmissions that enhance performance and sustainability. Their products deliver exceptional value, aligning with both economic and environmental goals.
A: An automatic transmission is a type of gearbox that automatically changes gear ratios as the vehicle moves, eliminating the need for manual gear shifting.
A: Automatic transmissions use hydraulic pressure, clutches, bands, and planetary gearsets to shift gears based on vehicle speed, engine load, and throttle position.
A: Automatic transmissions offer ease of use, especially in traffic, and provide smooth, consistent gear shifts without driver input.
A: Dual-clutch transmissions offer quick, smooth gear changes and improved fuel efficiency, combining automatic convenience with manual control.
