Have you ever wondered how cars shift gears on their own? Automatic Transmission revolutionized driving by making gear changes effortless. They've evolved from early designs to today's advanced systems. In this post, you'll learn about the history, technological advancements, and future trends of automatic transmissions, highlighting their growing popularity and importance in modern vehicles.
The story of automatic transmissions begins with Alfred Horner Munro, a Canadian steam engineer. In 1921, Munro patented the first automatic transmission, called the "Automatic Safety Transmission" (AST). His design used compressed air instead of hydraulic fluid to shift gears automatically. Although it featured four forward gears, it lacked reverse and parking gears. The air-powered system, however, was weak and inefficient, limiting its practical use. Despite its flaws, Munro’s invention laid important groundwork for future development.
Before Munro, the Sturtevant brothers from Boston created a transmission in 1904 that resembled an automatic gearbox. Their design had high and low forward gears controlled by flyweights responding to engine RPM. Though innovative, it struggled with durability and failed often due to the forces generated during gear changes. This early attempt showed the challenges engineers faced in automating gear shifts.
Both Munro's and the Sturtevant brothers' transmissions faced significant obstacles. Munro’s compressed air system lacked the power needed for smooth operation, while the Sturtevant design was mechanically fragile. Neither could reliably handle the demands of everyday driving. These early transmissions also lacked reverse gears and parking locks, limiting their functionality. The materials and technology of the time made it difficult to build a transmission that was both robust and efficient.
Despite these challenges, these early designs inspired further research. Engineers realized hydraulic fluid could provide the power and smoothness needed. This insight led to the next breakthrough: hydraulic automatic transmissions, which became the foundation for modern automatics.
Note: Early automatic transmission designs struggled mainly due to power source limitations and mechanical durability, highlighting the importance of hydraulic systems in later successful models.
The leap from early automatic transmissions to practical systems happened thanks to two Brazilian engineers: José Braz Araripe and Fernando Lehly Lemos. In the early 1930s, they developed the first prototype of an automatic transmission that used hydraulic fluid pressure to shift gears. This was a major breakthrough because hydraulic fluid provided the power and smoothness needed for reliable gear changes, unlike the compressed air systems used before.
Their invention caught the attention of General Motors, which acquired the prototype and plans. GM engineers refined the design, making it ready for mass production. This collaboration laid the foundation for the modern automatic transmission.
In 1940, General Motors launched the Hydra-Matic transmission, the first fully automatic transmission to be mass-produced and widely sold. It combined a hydraulic system and a mechanical planetary gearset to change gears automatically based on vehicle speed and engine load, without any driver input.
Unlike earlier attempts, the Hydra-Matic included multiple forward gears and reverse, making it fully functional for everyday driving. It also used a fluid coupling instead of a mechanical clutch, allowing smoother power transfer. This transmission first appeared in Oldsmobile models and quickly expanded to Cadillac and other GM brands.
The Hydra-Matic's design was revolutionary for its time, offering drivers an easier, more comfortable driving experience. It quickly became popular, and during World War II, it was even used in military vehicles like tanks, proving its durability and effectiveness under tough conditions.
The Hydra-Matic changed the automotive world forever. It made automatic transmissions desirable and practical for mass-market vehicles. By the late 1940s, almost every major car manufacturer either developed or licensed hydraulic automatic transmissions.
This innovation allowed cars to be more accessible to a wider audience, including those who found manual shifting difficult. It also opened the door for further technological advancements, such as torque converters and multi-speed automatics.
The success of hydraulic automatics pushed competitors to innovate, leading to a rapid evolution in transmission technology over the following decades. The Hydra-Matic remains a landmark achievement, marking the start of the modern era of automatic transmissions.
After the Hydra-Matic’s success, engineers sought ways to improve power transfer and smoothness in automatic transmissions. The torque converter emerged as a key innovation. Unlike the fluid coupling used in early automatics, the torque converter could multiply engine torque, offering better acceleration and efficiency.
Buick introduced the first automatic transmission featuring a torque converter in 1948, called the Dynaflow. It had two forward speeds and reverse but compensated for fewer gears by using the torque converter’s ability to boost power. This made driving smoother and more powerful, especially at low speeds.
The 1950s and 1960s saw rapid improvements in transmission design, focusing on adding more gears for better performance and fuel economy. Three-speed automatic transmissions became common, providing a wider range of gear ratios to match different driving conditions.
BorgWarner introduced a three-speed automatic with a lock-up torque converter in the mid-1950s, allowing direct mechanical connection at cruising speeds to reduce slippage and improve fuel economy. General Motors also developed the Powerglide, a two-speed automatic that became popular for its simplicity and durability, especially in racing applications.
By the 1960s, four-speed automatics with overdrive gears appeared, further enhancing fuel efficiency during highway driving. These transmissions allowed engines to run at lower RPMs while maintaining speed, reducing wear and saving fuel.
The Buick Dynaflow and GM Powerglide transmissions played crucial roles during this era. The Dynaflow’s torque converter technology set a new standard for smoothness, making driving more comfortable. It was especially favored in luxury cars.
The Powerglide, introduced in 1950, became renowned for its robustness and simplicity. It found a lasting place in performance and racing vehicles due to its ability to handle high power levels with minimal maintenance. Even decades later, modified versions of the Powerglide remain popular in drag racing.
Together, these transmissions demonstrated how advances in hydraulic technology and gear design could improve automatic transmissions’ efficiency, reliability, and appeal. Their innovations paved the way for more complex and capable transmissions in later decades.
The 1970s brought big changes to car design, mainly because of the 1973 oil crisis and new fuel economy rules like the Corporate Average Fuel Economy (CAFE) standards introduced in 1975. Automakers had to make cars that averaged at least 20 miles per gallon. This pushed them to rethink transmissions.
To save fuel, manufacturers started adding more gears to automatic transmissions. More gears meant the engine could run closer to its ideal speed more often, improving efficiency. The old 3- and 4-speed automatics couldn’t keep up, so 5-speed automatics appeared in the early 1990s. BMW led the way with the ZF 5-speed in 1991, followed by GM and others.
These standards also encouraged lighter cars and new materials like aluminum for transmission parts, reducing weight and improving fuel economy.
Another major shift was moving from rear-wheel drive (RWD) to front-wheel drive (FWD). FWD cars use less space and weigh less, helping fuel economy. This change forced transmission designs to adapt.
Front-wheel-drive cars usually combine the transmission and differential into a single unit called a transaxle. These transaxles had to be compact and efficient. The Oldsmobile Toronado in 1966 was one of the first FWD cars with an automatic transmission. Over time, nearly all small and mid-size cars switched to FWD.
This transition also pushed engineers to develop new transmission layouts and control systems to fit the tighter space and different power delivery of FWD setups.
By the 1980s, automatics began incorporating electronic controls. Early automatics relied on mechanical and hydraulic systems to decide when to shift gears. These systems used things like throttle valves, vacuum modulators, and governors.
Electronic controls replaced many of these parts with sensors and computer units, allowing more precise and adaptable shifting. The transmission control unit (TCU) or engine control unit (ECU) monitors speed, throttle position, engine load, and even braking. It then commands solenoids to engage clutches and shift gears smoothly.
This advancement improved fuel efficiency, performance, and driving comfort. Electronic systems could adapt shifts to different driving styles and conditions, such as downshifting on hills or during acceleration.
Continuously Variable Transmissions, or CVTs, revolutionized automatic transmissions by replacing fixed gear sets with a system that offers an infinite range of gear ratios. Instead of shifting between gears, CVTs use a pair of variable-diameter pulleys connected by a belt or chain. By adjusting pulley diameters, the transmission changes the gear ratio smoothly and continuously.
This design keeps the engine running at its most efficient RPM range, improving fuel economy and providing seamless acceleration. CVTs are compact and cost-effective, making them popular in small and mid-size vehicles. For example, brands like Nissan and Subaru have widely adopted CVTs in many models.
However, CVTs face challenges. The belt or chain can wear out faster than traditional gears, requiring maintenance or replacement. CVTs also struggle to handle high torque loads, limiting their use in heavy-duty or high-performance vehicles. Despite these issues, CVTs continue evolving, with manufacturers improving durability and control algorithms.
Dual Clutch Transmissions, known as DCTs or Direct Shift Gearboxes (DSG), blend the benefits of manual and automatic transmissions. They use two separate clutches: one controls odd-numbered gears, the other even-numbered gears. This setup allows the next gear to pre-engage while the current gear is still engaged, resulting in lightning-fast, smooth shifts.
DCTs offer quick gear changes without interrupting power flow, enhancing performance and fuel efficiency. Drivers can choose fully automatic mode or manually shift using paddle shifters, making DCTs popular in sports cars and high-performance vehicles. Porsche and Volkswagen pioneered DCTs, while modern examples include the Chevrolet Corvette C8, which uses an 8-speed DCT exclusively.
Despite their advantages, DCTs have some drawbacks. They can be complex and costly to repair. At low speeds, some drivers notice jerky or hesitant behavior, especially in stop-and-go traffic. Manufacturers continue refining software and hardware to mitigate these issues.
Both CVTs and DCTs push transmission technology beyond traditional planetary gearsets. Their unique designs offer:
● CVTs: Smooth acceleration, improved fuel efficiency, compact size, and lower manufacturing costs.
● DCTs: Rapid gear shifts, better performance, fuel savings, and driver engagement options.
Challenges include:
● CVTs: Belt durability, torque limitations, and repair costs.
● DCTs: Complexity, cost, and occasional low-speed drivability concerns.
These non-traditional transmissions represent important steps in the evolution of automatic gearboxes. They address modern demands for efficiency, performance, and driving experience. As technology advances, expect further improvements and wider adoption.

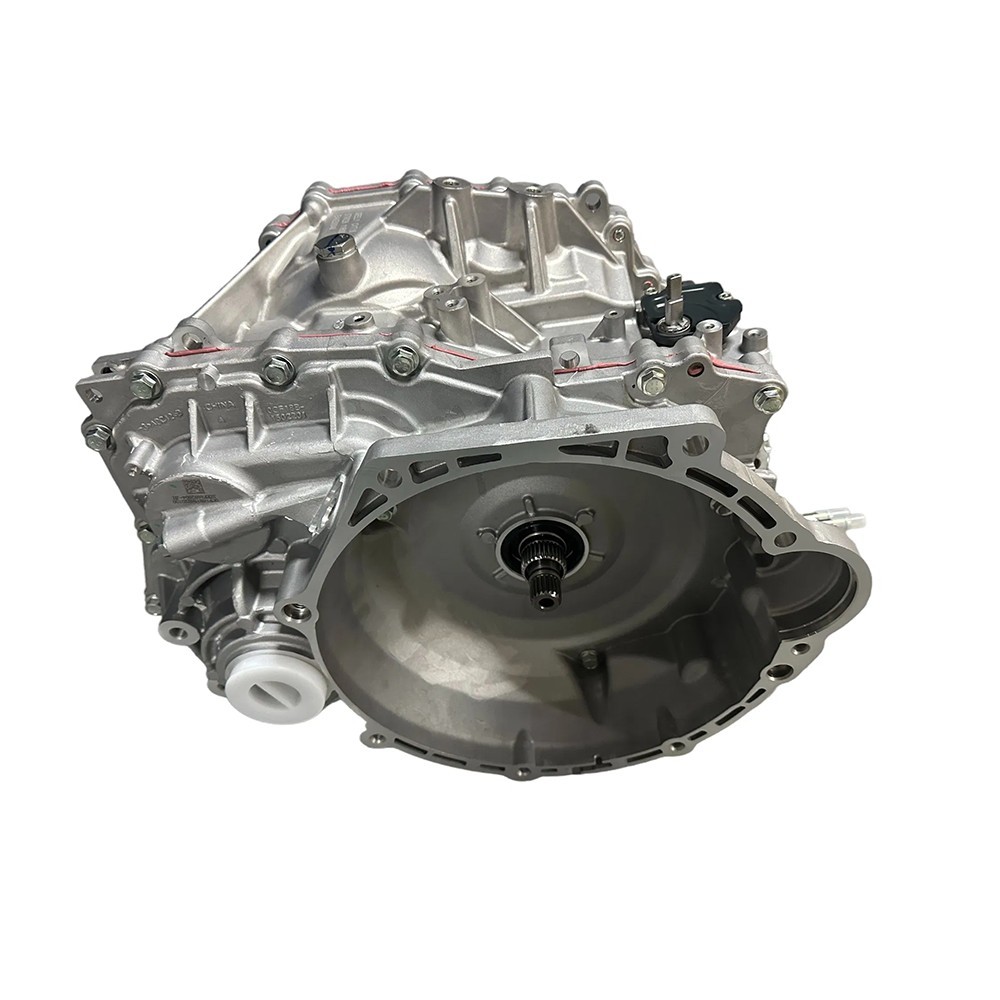

In recent years, automatic transmissions have evolved to include more gears, such as 8-speed and 10-speed models. Adding gears helps engines run closer to their ideal RPM range, improving fuel efficiency and performance. For example, an 8-speed transmission can offer smoother acceleration and better highway fuel economy by lowering engine speed at cruising. The 10-speed transmission, introduced by some manufacturers in the late 2010s, pushes this even further, allowing more precise control over power delivery.
These transmissions use advanced planetary gear sets and complex hydraulic controls to manage multiple gear ratios seamlessly. They are common in both rear-wheel-drive and front-wheel-drive vehicles, including trucks and SUVs. The extra gears help meet stricter fuel economy regulations and consumer demand for better performance.
Modern automatic transmissions rely heavily on electronic controls. Sensors monitor vehicle speed, engine load, throttle position, and braking. A transmission control unit (TCU) or engine control unit (ECU) processes this data and adjusts gear shifts in real time. Electronic solenoids activate clutches and bands inside the transmission, enabling smooth and timely shifts.
This integration allows transmissions to adapt to different driving styles and conditions. For instance, the system can hold gears longer during sporty driving or shift earlier to save fuel in city traffic. It also supports features like hill start assist, adaptive cruise control, and even predictive shifting based on GPS data.
Advanced electronics improve reliability by reducing mechanical wear and enable diagnostics that help technicians troubleshoot issues faster. They also pave the way for integration with hybrid and electric vehicle systems, where transmissions must work closely with electric motors.
Looking ahead, automatic transmissions will continue to evolve, driven by demands for efficiency, performance, and connectivity. Some expected trends include:
● More Gears and Variable Ratios: Transmissions may exceed 10 speeds or adopt more sophisticated continuously variable designs to optimize power delivery further.
● Greater Integration with Hybrid and Electric Systems: As electrification grows, transmissions will be designed to seamlessly blend power from internal combustion engines and electric motors.
● Artificial Intelligence and Machine Learning: Future transmission controllers could use AI to learn driver habits and road conditions, optimizing shift strategies dynamically.
● Lightweight Materials and Compact Designs: To improve fuel economy, transmissions will use advanced materials like carbon fiber and new alloys to reduce weight and size.
● Wireless and Over-the-Air Updates: Electronic control software could be updated remotely to improve transmission performance and fix bugs without dealership visits.
These innovations will make automatic transmissions more efficient, responsive, and tailored to individual drivers. They will also play a key role in the transition to greener, smarter vehicles.
Automatic transmissions have evolved significantly, from early designs by Munro and the Sturtevant brothers to hydraulic systems pioneered by Araripe and Lemos. These innovations led to modern advancements like torque converters and multi-speed gearboxes. Today, vehicles feature 8-speed and 10-speed transmissions, integrating advanced electronics for efficiency and performance. Future trends include more gears, AI, and lightweight materials. Companies like Tosen offer products that enhance driving comfort and efficiency, providing valuable solutions for modern automotive needs.
A: An automatic transmission is a type of gearbox that automatically changes gear ratios as the vehicle moves, allowing the driver to focus on steering and acceleration without manually shifting gears.
A: An automatic transmission uses a combination of hydraulic systems, electronic controls, and mechanical gearsets to shift gears automatically based on vehicle speed and engine load.
A: Hydraulic systems provide the necessary power and smoothness for reliable gear changes, making them crucial for the effectiveness of automatic transmissions.
